How Solar Batteries Work

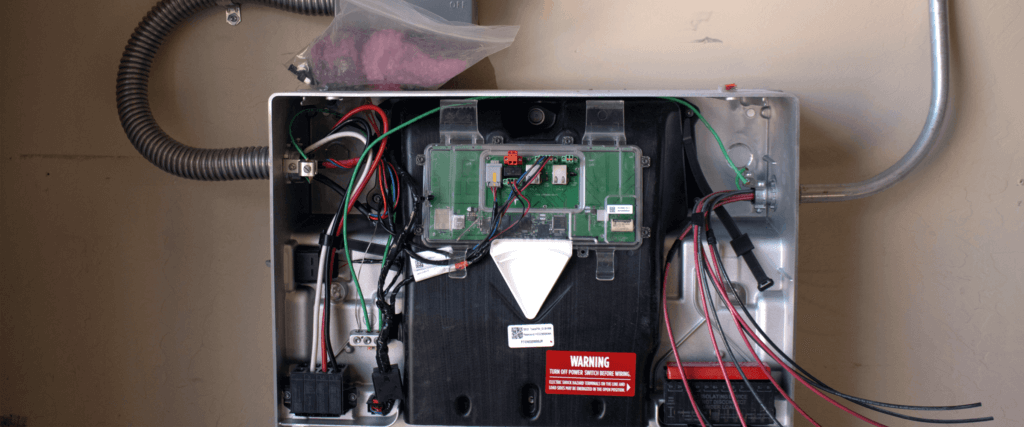

Tesla Powerwall 3 cover and inside of a batter getting installed in a garage

Solar batteries play a crucial role in maximizing the efficiency and reliability of solar energy systems, and it is important to know how they operate. Essentially, solar batteries act as reservoirs of energy, allowing homeowners to harness the sun’s energy whenever they need. This increases energy independence and reduces the reliance on the traditional utility grid for power.

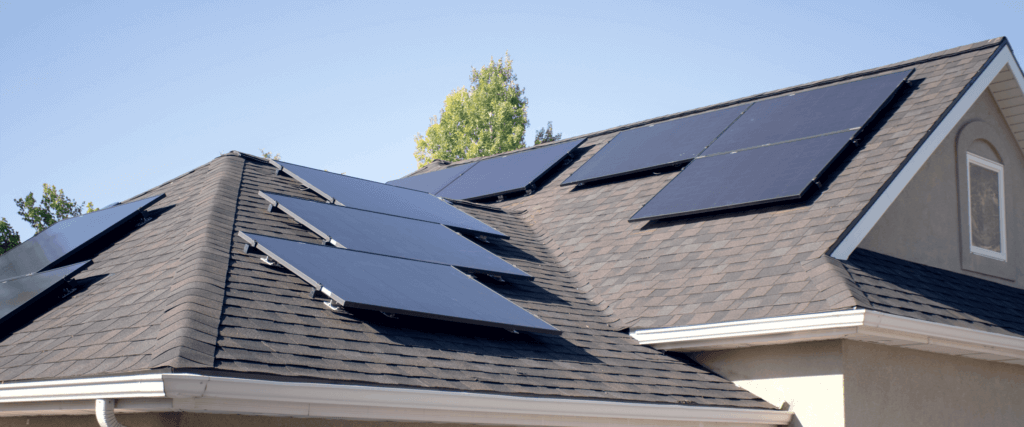

Multiple solar arrays on a light brown shingle home

What is a Solar Battery?

A solar battery, also known as solar energy storage systems, is a device used to store excess electricity generated by solar panels.


Solar panels capture sunlight and produce electricity, but this energy production fluctuates depending on weather conditions, time of day, and the capacity of the solar system. Solar batteries store this excess energy for later use, such as during the night, in emergencies, or when there is limited sunlight available.

Tesla Powerwall 3 cover and inside of a batter getting installed in a garage

The Science Behind Solar Batteries

Solar batteries play a crucial role in maximizing the efficiency and reliability of solar power.


At the heart of a solar battery system are rechargeable batteries, typically lithium-ion batteries, although other types like lead-acid or flow batteries can also be installed and used. These batteries consist of several components, including electrodes, an electrolyte, and a separator.


When sunlight hits a solar panel, it generates direct current (DC) electricity. This electricity flows into the solar battery system, where it’s converted into alternating current (AC) electricity using an inverter to use throughout your home or can be stored for later use.


During charging, the lithium ions move from the positive electrode (cathode) to the negative electrode (anode) through the electrolyte. This movement of ions creates a flow of electrons, which is electrical current, and stores energy in the battery. When the stored energy is needed, such as during the night or when the sun isn’t shining, the process is reversed. The lithium ions move back to the positive electrode, releasing energy in the form of electrical current that can power household appliances and common electronic devices.


The electrolytes in the battery are essential in this process. Electrolytes are a solution or medium allowing ions to move between the electrodes while preventing the flow of electrons directly between them. This movement of ions during charging and discharging is what allows the battery to store and release energy, as needed, effectively.


In summary, solar batteries work by storing excess electricity generated by solar panels during sunny periods and releasing it, as needed, using rechargeable batteries with electrodes, an electrolyte, and a separator to facilitate the movement of ions and the flow of electrical current.

How Batteries Store Energy

Solar batteries operate using anodes, which are typically composed of materials like lithium, which serve as the source of positively charged ions during energy discharge. Conversely, cathodes, often made of materials like lithium cobalt oxide or lithium iron phosphate, attract these ions during charging. Separating the anode and cathode is an electrolyte solution, which facilitates the movement of ions between the two electrodes while preventing a direct electrical connection. This electrolyte, commonly a lithium salt dissolved in a solvent, maintains the battery’s efficiency and longevity.

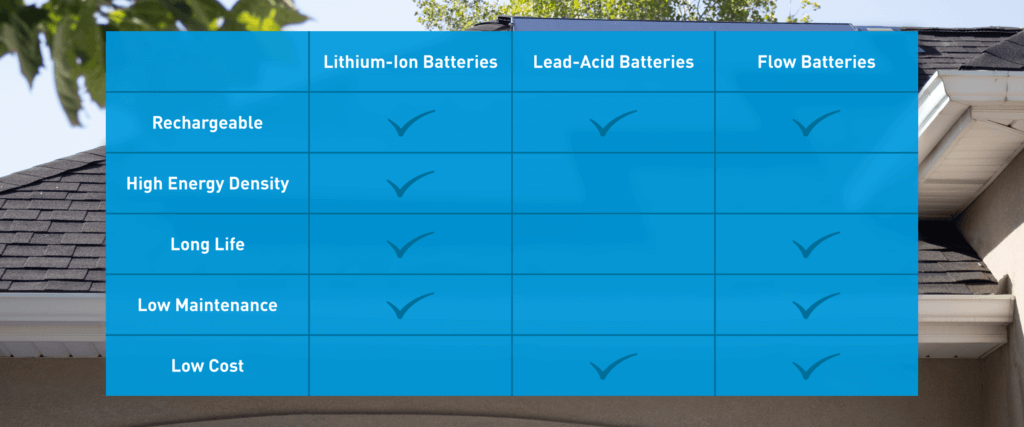

The Three Most Popular Types of Solar Batteries

Let’s compare three of the most common solar battery storage technologies: lithium-ion batteries, lead-acid batteries, and flow batteries.

Lithium-Ion Batteries

Lithium-ion batteries are well-recognized and common because they utilize the same technology as smartphones and other high-technology devices. They are known for their high energy density, longevity, and low maintenance requirements compared to other types of batteries.

Lead-Acid Batteries

Lead-acid batteries have been around for 150 years and are well-established. They consist of lead plates submerged in an electrolyte solution of sulfuric acid. Lead-acid batteries are relatively inexpensive compared to lithium-ion batteries but have a lower energy density and a shorter lifespan.

Flow Batteries

A flow solar battery, also known as a flow battery or redox flow battery, is a type of rechargeable battery technology. Unlike traditional solid-state batteries like lithium-ion or lead-acid batteries, flow batteries store energy in chemical compound dissolved in liquids, typically called electrolytes.

AC Coupled vs. DC Coupled Storage

Coupling refers to how your solar system is wired to the battery storage system, determining whether it operates on an alternating current (AC) or direct current (DC) basis. Homeowners looking for coupled storage often prioritize optimizing their energy usage and reducing reliance on the utility grid.


Understanding coupling is important for homeowners investing in solar batteries as it directly impacts the overall solar system performance, energy resilience, and cost-effectiveness. By selecting the appropriate battery with its corresponding coupling method, homeowners can tailor their energy storage solutions to meet their specific needs.


With an (AC) coupled storage system, the journey of electricity starts with your solar panels, where it’s generated as direct current (DC) power. However, before it reaches your home appliances, it undergoes a conversion process within a solar inverter, transforming it into AC electricity. This AC power can then be utilized within and throughout your home. If there’s an excess of AC electricity generated, it is rerouted back to the solar inverter, where it’s converted back into DC power for storage in the solar battery.


AC coupled storage is simple. The installation process is straightforward, making it an attractive option for those looking for a hassle-free setup. Moreover, in some cases, it can be more cost-effective due to the availability of standardized components and installation procedures.


On the other hand, the DC electricity generated by the solar panels flows either directly into the battery for storage or through the inverter for conversion into AC power, which can then be used to power your home.


The primary benefit of DC coupled storage lies in its efficiency. With fewer energy conversions along the way, there’s less loss of energy during the process. This can result in a more efficient utilization of the solar power generated, potentially maximizing your overall energy savings.


While DC coupled systems offer efficiency advantages, they may come with some trade-offs. This setup often requires additional components and more intricate wiring, which could translate to higher upfront costs compared to AC coupled systems. Additionally, the complexity of the installation might require experienced professionals for proper setup and maintenance.

Solar Battery Cost

Solar battery costs continue to decrease due to advancements in technology and the growing demand for sustainable energy solutions, making solar batteries more accessible to homeowners. This trend not only lowers the barrier for entry but also encourages more widespread adoption of renewable energy, contributing to a greener and more sustainable future.

How Solar Batteries Work with a Solar Power System

Solar batteries enhance the functionality and efficiency of a rooftop solar power system. Managed by charge controllers to prevent overcharging, the solar batteries enable the seamless transition of power during periods of low sunlight or increased demand. When electricity demand surpasses solar panel output, stored energy is discharged from the battery, converted into AC electricity, and utilized to power your home including electrical devices. These batteries ensure a continuous energy supply, helping sustain your solar panels in their off times and giving homeowners greater energy independence.

Benefits of Investing in Battery Storage

Using a solar battery system offers many benefits for homeowners. Some of the biggest include:


  • Maximize Self-Consumption: By storing excess solar energy generated during peak sunlight hours, solar batteries enable users to tap into this stored energy, rather than using electricity from the power grid.
  •  prone to power outages.
  • Reduce Peak Demand Charges: Solar batteries contribute to reducing peak demand charges imposed by utility companies. By storing excess solar energy during off-peak periods and discharging it during peak demand times, homeowners can effectively manage energy costs and lower their electricity bills.
  • Reduced Carbon Emissions: Solar batteries play a crucial role in reducing carbon emissions by storing excess energy generated by solar panels during peak production periods.
  • Security During Outages: During power outages, solar batteries act as a reliable backup, ensuring a continuous power supply for essential appliances and devices.
  • Power at Night: Solar batteries store energy collected during the day from sunlight as electricity. This stored energy can then be used to power homes and buildings during night when there is no sunlight available for direct generation, ensuring a continuous and sustainable energy supply.
  • Money Saving: While solar battery systems involve upfront costs, the long-term financial benefits can be rewarding and considerable. Various incentives, rebates, and tax credits offered by governments and utilities further offset the initial investment, making solar batteries more accessible and affordable.


By understanding how solar batteries work and their various configurations, you can make an informed decision about integrating them with your custom designed, rooftop solar power system.

Add a Solar Battery to Your Current System Today

At Blue Raven Solar, we’re dedicated to installing and providing renewable energy solutions. We offer cutting-edge solar battery technology to integrate seamlessly into your photovoltaic (PV) solar installation. From the FranklinWH to the Tesla Powerwall 3, you can find a storage solution to fit your needs and home. Whether you’re curious about solar technology or ready to enhance your home’s energy independence, Blue Raven Solar is here to help you make the switch.
